Ballscrew accessories

To install the ballscrews, we offer compatible accessories matched to the various nominal sizes. These include complete bearing units which can easily be installed on your application or individual bearings with suitable locknuts, should the bearings need to be integrated into the machine bed.
132 product(s)
  • 1(current)
  • 2
Type
Shaft nominal diameter
Shaft nominal diameter
d1
d
d2
D
Cdyn_axial
C0_axial
Permissible speed
Cdyn_axial
C0_axial
Max. permissible axial load
Permissible speed
GFD16
16
GFD20
20
GFD25
25

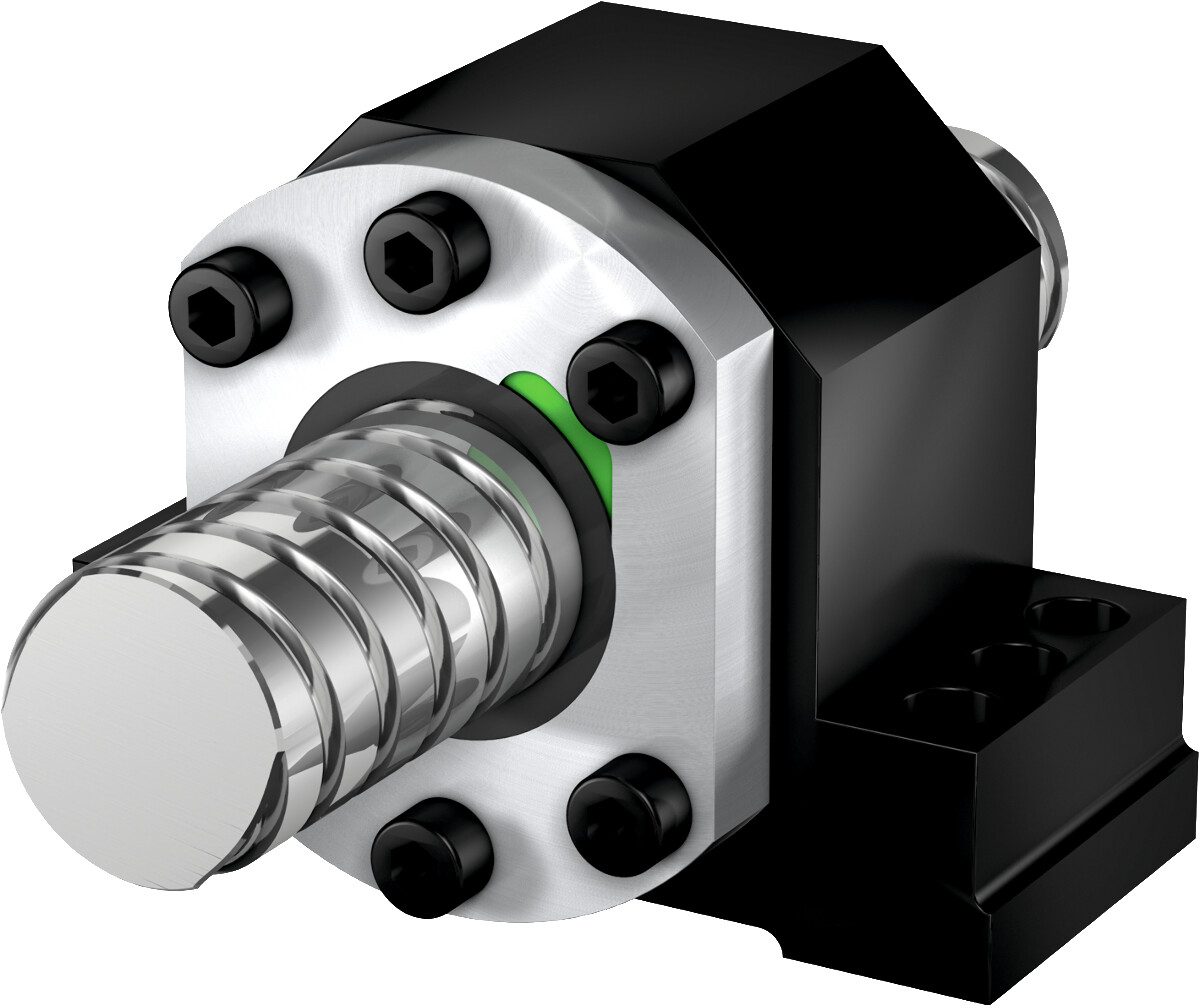

GFD32
32
GFD40
40
GFD50
50
SFA06
12 4900 6100 14000
SFA10
16 6900 8500 6800
SFA12
20 18600 24700 3800
SFA17
25 20700 31000 3300
SFA20
32 28500 47000 3000
SFA30
40 32000 64000 2200
SFA40
50 47500 101000 1800
SLA06
12
SLA10
16
SLA12
20
SLA17
25
SLA20
32
SLA30
40
SLA40
50
EK08
12 2800 4800 1100 40000
EK10
16 5200 8800 2000 24000
EK12
16 6000 9400 2200 22000
EK15
20 6900 10000 2400 19000
EK20
25 15200 21600 6800 9500
EF08
12
EF10
16
EF12
16
EF15
20
EF20
25
BK25
32 20500 26300 7000 12000
BK30
40 27000 33500 10600 7100
BK40
50 46100 52000 18000 5300
BF25
32
BF30
40
BF40
50
FK08
12 2800 4800 1000 40000
FK10
16 5200 8800 1900 24000
FK12
16 6000 9400 2200 22000
FK15
20 6900 10000 2400 19000
FK20
25 15300 21600 6800 9500
FK25
32 19000 24000 8100 8500
FK30
40 27000 33500 10600 7100
FF10
16
FF12
16
FF15
20
FF20
25
FF25
32
FF30
40
ZKLFA0630
6 19
ZKLFA0640
6 24
ZKLFA0850
7 32
ZKLFA1050
10 32
ZKLFA1263
12 42
ZKLFA1563
15 42
ZKLF1255
12 55
ZKLF1560
15 60
ZKLF1762
17 62
ZKLF2068
20 68
ZKLF2575
25 75
ZKLF3080
30 80
ZKLF30100
30 100
ZKLF3590
35 90
ZKLF40100
40 100
ZKLF40115
40 115
ZKLF50115
50 115
ZKLF50140
50 140
ZKLF60145
60 145
ZKLF70155
70 155
ZKLF80165
80 165
ZKLF90190
90 190
ZKLN0619
6 19
ZKLN0624
6 24
ZKLN0832
8 32
ZKLN1034
10 34
ZKLN1242
12 42
ZKLN1545
15 45
ZKLN1747
17 47
ZKLN2052
20 52
ZKLN2557
25 57
ZKLN3062
30 62
ZKLN3072
30 72
ZKLN3572
35 72
ZKLN4075
40 75
ZKLN4090
40 90
ZKLN5090
50 90
ZKLN50110
50 110
ZKLN60110
60 110
ZKLN70120
70 120
HIR06
M6 × 0.5 16 8
HIR08
M8 × 0.75 16 8
HIR10
M10 × 0.75 18 8
HIR12
M12 × 1 22 8
HIR15
M15 × 1 25 8
HIR17
M17 × 1 28 10
HIR20x1
M20 × 1 32 10
HIR20x1,5
M20 × 1.5 32 10
HIR25
M25 × 1.5 38 12
HIR30
M30 × 1.5 45 12
HIR35
M35 × 1.5 52 12
